MOULDS DESIGN

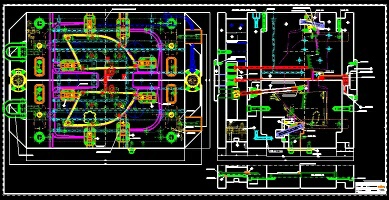

 Plastic mold injection of f two symmetrical pieces, of a grid in which we observe the following:
  • Hydraulic Expulsion
  • Liberateed negatives by sliding panels and skates.
  • Injection with warm Mouthpiece








 Plastic mold injection of f two symmetrical pieces.
 Cavities with diverse mechanisms:
  • Sliding panels
  • Skates
  • Double movements inside sliding panels and skates  to eliminate negatives







Plastic mold injection of f two symmetrical pieces.
Cavities with diverse mechanisms:

  • Opening plate with gas wharf stops to drive interior wedges  to liberate negatives before operating the expulsion.
  • Sliding panels.
